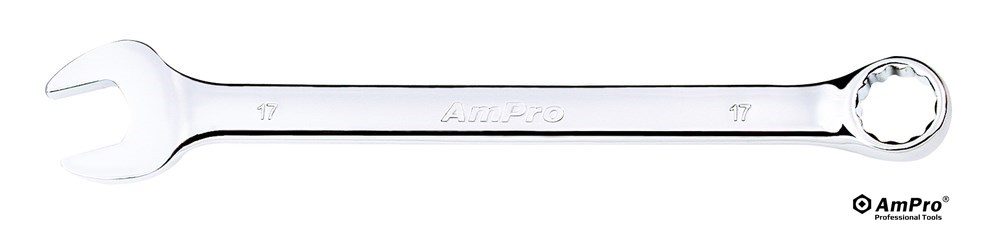

LONG STYLE COMBINATION WRENCHES
Model: T40006-T40030,T40032,T40050-T40065

Description LONG STYLE COMBINATION WRENCHES
Features ·CHROME VANADIUM STEEL ·MIRROR CHROME FINISH ·LONG HANDLE CONSTRUCTION ·15-DEGREE OFFSET AT BOX END ·CONVEX DRIVE, 12PT
Specification

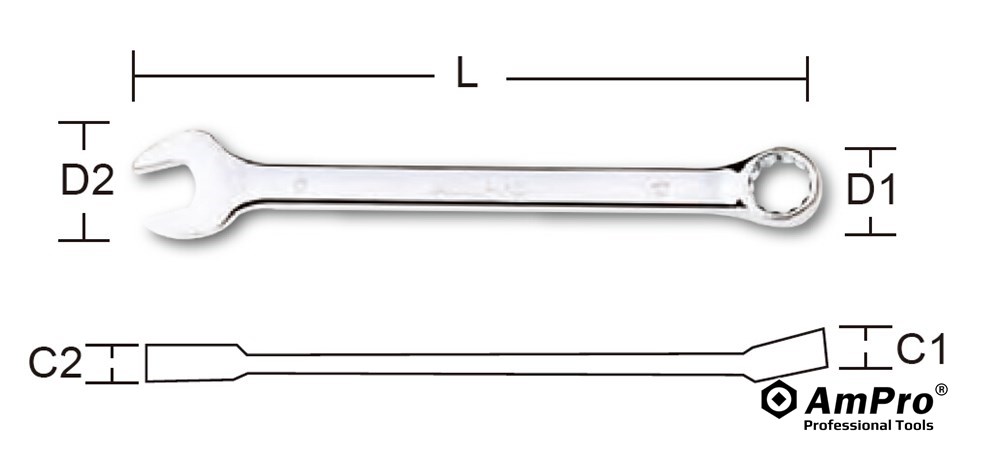

ModelSizeL(mm)C1(mm)C2(mm)D1(mm)D2(mm)
T40006 6mm1295.84.310.6 15.3
T40007 7mm13564.611.8 16.3
T40008 8mm1426.64.713.0 18.5
T40009 9mm1556.64.713.8 19.2
T4001010mm1617.45.115.4 20.8
T4001111mm1687.85.917.2 23.2
T4001212mm1748.25.917.8 24.0
T4001313mm1808.66.319.2 26.5
T4001414mm1938.66.320.0 26.8
T4001515mm20097.122.5 30.8
T4001616mm2079.27.923.0 32.7
T4001717mm22710.47.924.4 34.4
T4001818mm23911.18.726.7 37.5
T4001919mm25011.59.327.7 39.1
T4002020mm 25911.99.528.8 40.7
T4002121mm27112.79.830.8 43.5
T4002222mm29513.510.232.7 45.8
T4002323mm31714.210.534.6 49.5
T4002424mm31714.210.534.6 49.5
T4002525mm33914.911.436.6 51.5
T4002626mm33914.911.436.6 51.5
T4002727mm36215.712.138.6 55.3
T4002828mm39416.512.842.4 58.5
T4002929mm39416.512.842.4 58.5
T4003030mm39416.512.842.4 58.5
T4003232mm4291813.445.6 65.0

T40050 1/4"1295.84.310.6 15.3
T40051 5/16"1426.64.713.0 18.5
T40052 3/8"1617.45.115.4 20.8
T40053 7/16"1687.85.917.2 23.2
T40054 1/2"1808.66.319.2 26.5
T40055 9/16"1938.66.320.0 26.8
T40056 5/8"2079.27.923.0 32.7
T40057 11/16"22710.47.924.4 34.4
T40058 3/4"25011.59.327.7 39.1
T40059 13/16"27112.79.830.8 43.5
T40060 7/8"29513.510.232.7 45.8
T40061 15/16"31714.210.534.6 49.5
T40062 1"33914.911.436.6 51.5
T400631-1/16"36215.712.138.6 55.3
T40064 1-1/8"39416.512.842.4 58.5
T40065 1-1/4"4291813.445.6 65.0
