FLEX-HEAD GEARED RATCHETING WRENCHES
Model: T42308-T42332,T42350-T42362

Description FLEX-HEAD GEARED RATCHETING WRENCHES

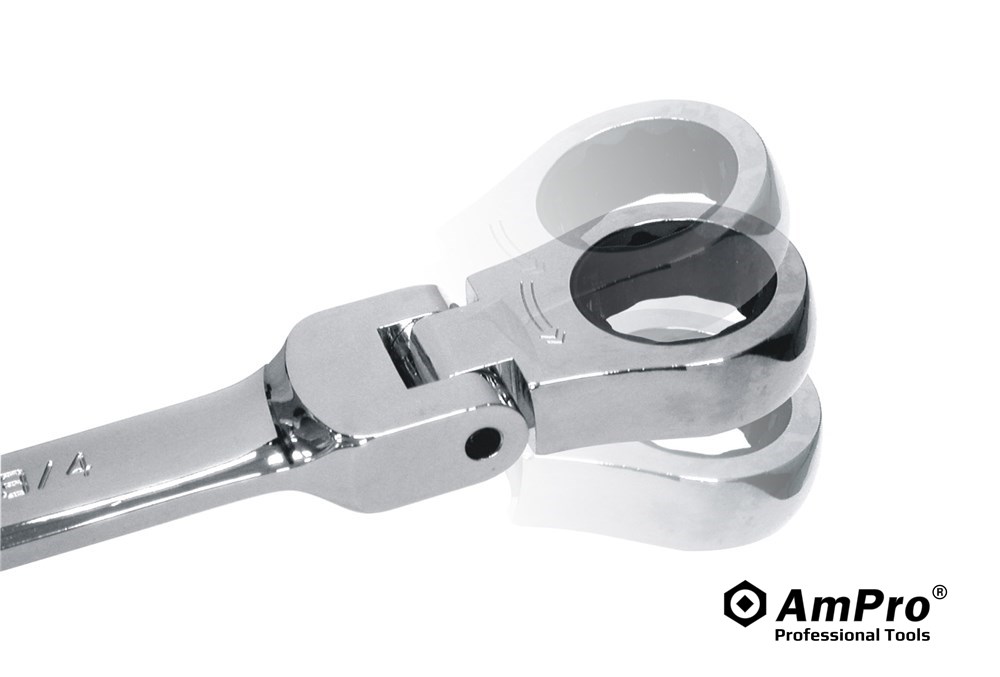

Features ·CHROME VANADIUM STEEL ·MIRROR FINISH ·PRECISION 72-TOOTH "GEARED" DESIGN ·FLEX HEAD,5°INCREMENTS
Specification

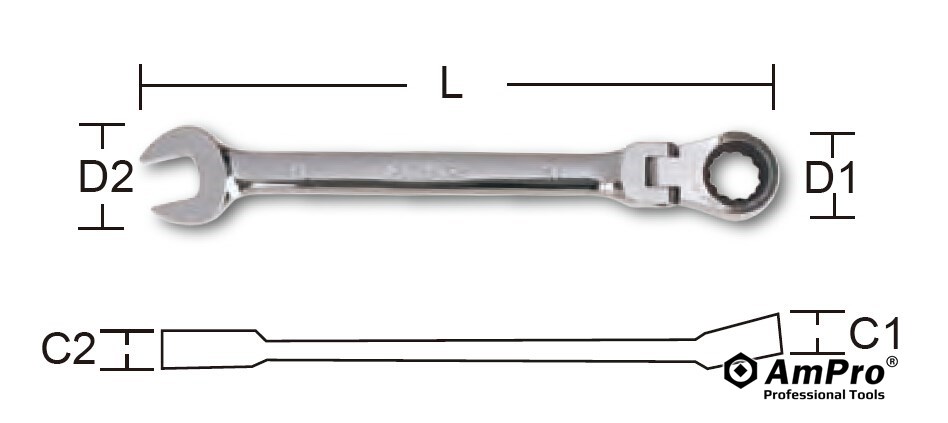

ModelSizeL(mm)C1(mm)C2(mm)D1(mm)D2(mm)
T42308 8mm1367.005.5017.5 17.1
T42309 9mm1437.605.8019.3 19.2
T4231010mm1607.706.1021.0 21.3
T4231111mm1688.306.4022.7 23.7
T4231212mm1748.706.7024.0 25.8
T4231313mm1809.307.0026.0 26.8
T4231414mm1939.407.3027.7 30.4
T4231515mm20010.007.7029.1 32.1
T4231616mm21610.608.0030.7 33.8
T4231717mm23310.908.3032.6 37.0
T4231818mm23911.208.6033.7 38.7
T4231919mm25011.509.0034.8 40.2
T4232121mm28513.0010.7042.4 46.5
T4232222mm28513.0010.7042.4 46.5
T4232424mm32514.5011.5047.9 52.3
T4232727mm35915.0012.5052.0 55.2
T4233030mm42517.0013.8060.0 65.0
T4233232mm42517.0013.8060.0 65.0

T42350 1/4"1367.005.5017.517.1
T42351 5/16"1367.005.5017.5 17.1
T42352 3/8"1607.706.1021.0 21.3
T42353 7/16"1688.306.4022.7 23.7
T42354 1/2"1809.307.0026.0 26.8
T42355 9/16"1939.407.3027.7 30.4
T42356 5/8"21610.608.0030.7 33.8
T4235711/16"23310.908.3032.6 37.0
T42358 3/4"25011.509.0034.8 40.2
T4235913/16"28513.0010.7042.4 46.5
T42360 7/8"28513.0010.7042.4 46.5
T4236115/16"32514.5011.5047.9 52.3
T42362 1"32514.5011.5047.9 52.3
