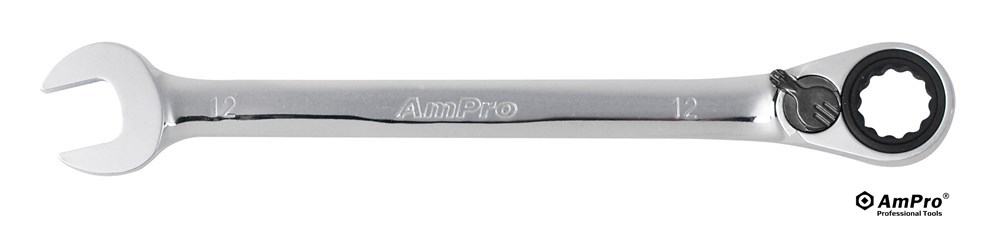

REVERSIBLE "GEARED" RATCHETING WRENCHES
Model: T41608-T41632,T41651-T41658

Description REVERSIBLE "GEARED" RATCHETING WRENCHES
Features ·CHROME VANADIUM STEEL ·MIRROR FINISH ·PRECISION 72-TOOTH "GEARED" DESIGN
Specification

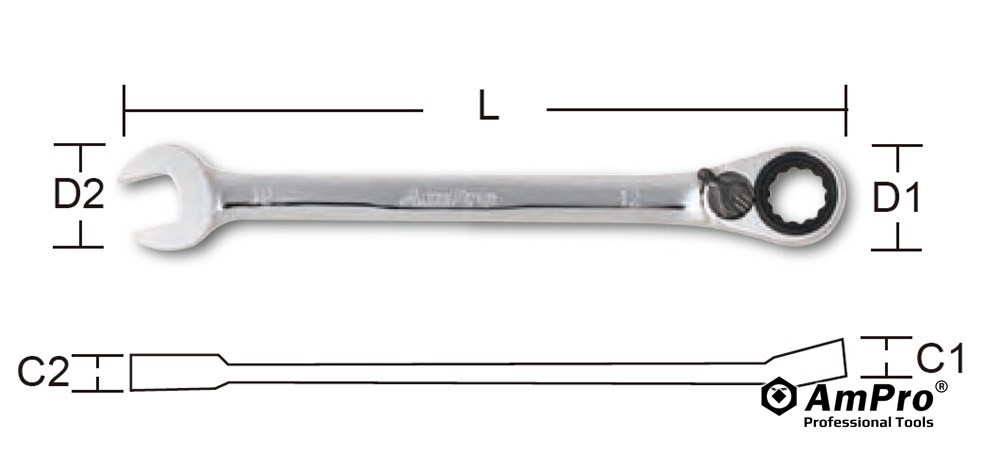

ModelSizeL(mm)C1(mm)C2(mm)D1(mm)D2(mm)
T41608 8mm1367.704.8017.7 18.5
T41609 9mm1437.005.3019.1 20.5
T4161010mm1598.205.8021.2 22.5
T4161111mm1688.206.1022.6 25.0
T4161212mm1748.806.3023.8 26.9
T4161313mm1808.906.8025.9 29.0
T4161414mm1909.307.2027.7 31.5
T4161515mm2009.407.6029.2 34.0
T4161616mm2169.907.9031.8 35.7
T4161717mm23310.608.1034.1 38.3
T4161818mm23911.008.5034.0 40.1
T4161919mm24811.209.0035.1 42.0
T4162121mm28413.0010.3041.5 45.3
T4162222mm28413.0010.3041.5 45.3
T4162424mm32414.5010.8047.0 52.0
T4162727mm35915.0012.5052.0 58.6
T4163030mm42517.0013.1059.5 64.5
T4163232mm42517.0013.1059.5 64.5

T41651 5/16"1367.704.8017.7 18.5
T41652 3/8"1598.205.8021.2 22.5
T41653 7/16"1688.206.1022.6 25.0
T41654 1/2"1808.906.8025.9 29.0
T41655 9/16"1909.307.2027.7 31.5
T41656 5/8"2169.907.9031.8 35.7
T4165711/16"23310.608.1034.1 38.2
T41658 3/4"24811.209.0035.1 42.0
