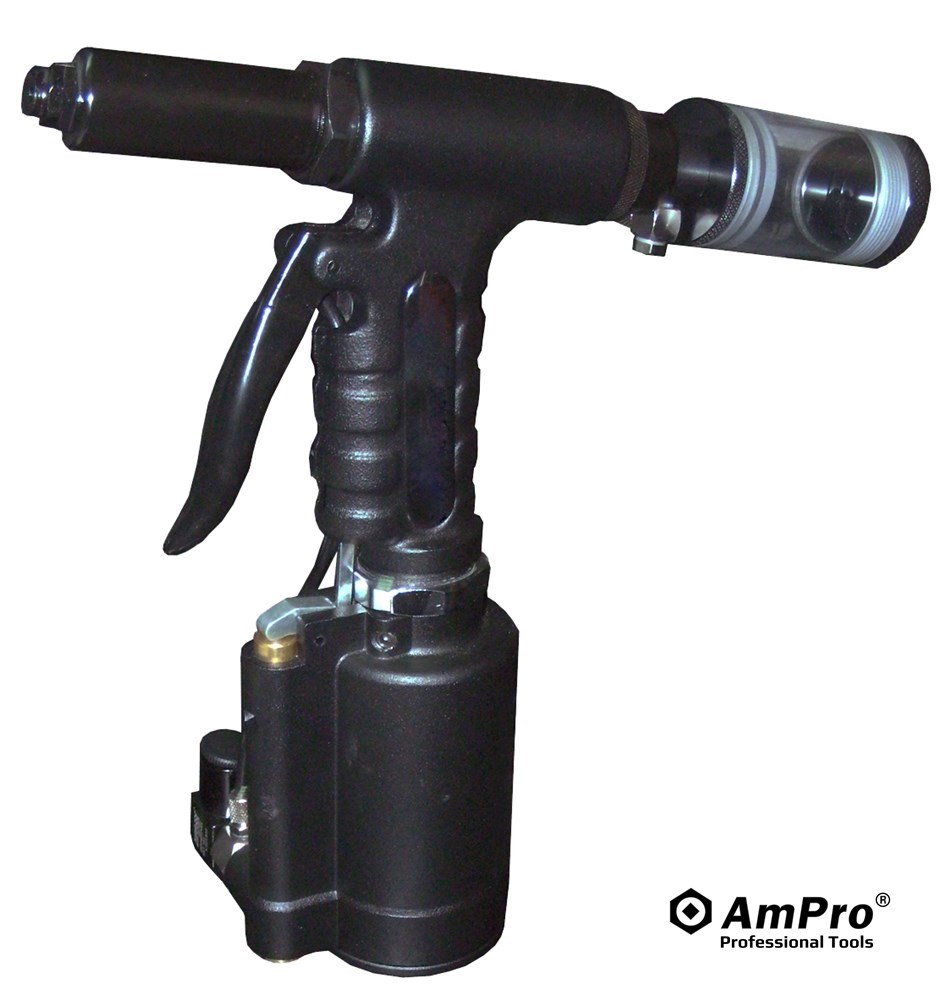

5/32" AIR HYDRAULIC RIVETER
Model: A3704
Model #
A3704 5/32" AIR HYDRAULIC RIVETER
/Quotation/AddToQuote?productModelNo=A3704
Description 5/32" AIR HYDRAULIC RIVETER
Features . EASY ADJUSTABLE HEAD & NUT DESIGNED FOR OBTAINING THE MOST EFFECTIVE STROKE AND RIVETING SPEED . ALUMINUM ALLOY FORGED HYDRAULIC SECTION FOR GREATER STRENGTH AND DURABILITY . 2 PIECE ULTRA JAW MADE FROM HIGH GRADE TOOL STEEL AND SPECIAL HEAT TREATMENT FOR INCREASING JAW LIFE AND REDUCING SERVICE COSTS . MANDREL COLLECTION BOTTLE EQUIPPED WITH THE PATENTED VACUUM COLLECTING SYSTEM FOR THE CLEANLINESS AND SAFETY OF WORK AREA . ERGONOMICALLY DESIGNED TRIGGER ENHANCES COMFORT AND LOWER OPERATOR'S FATIGUE . LOCK NUT DESIGNED FOR EASY TOOL SERVICE . SIDE MOUNTED SWIVEL AIR INLET JOINT FOR THE TOOL MANEUVERABILITY . RUBBER BOOT DESIGNED FOR WELL PROTECTION OF THE TOOL AND WORK SURFACE APPLICATIONS WHEREVER THE FASTENING METHODS LIKE: WELDING, SHEET METAL SCREW, BOLT, NUT, WASHER, TUBULAR, SEMI-TUBULAR AND SOLID RIVETS AND ADHESIVES ARE APPLIED, CAN BE SUBSTITUTED BY BLIND RIVETS. ALL MODELS ABOVE ARE GOOD FOR SETTING STANDARD BLIND RIVETS AND STRUCTURAL BLIND RIVETS.
Category AIR HYDRAULIC RIVETERS
Specification
TRACTION POWER IBF(KGF) 770(350) STROKE LENGTH INCH(MM) 11/16(18) NET WEIGHT LBS(KGS) 2.86(1.3) OPERATING AIR PRESSURE PSI(BAR) 90(6.2) AIR INLET SIZE INCH-NPT/PT 1/4 MIN. HOSE SIZE INCH(MM) 3/8(10) NOSEPIECES EQUIPPED INCH(MM) 3/32(2.4)1/8(3.2)5/32(4.0)
